Overview

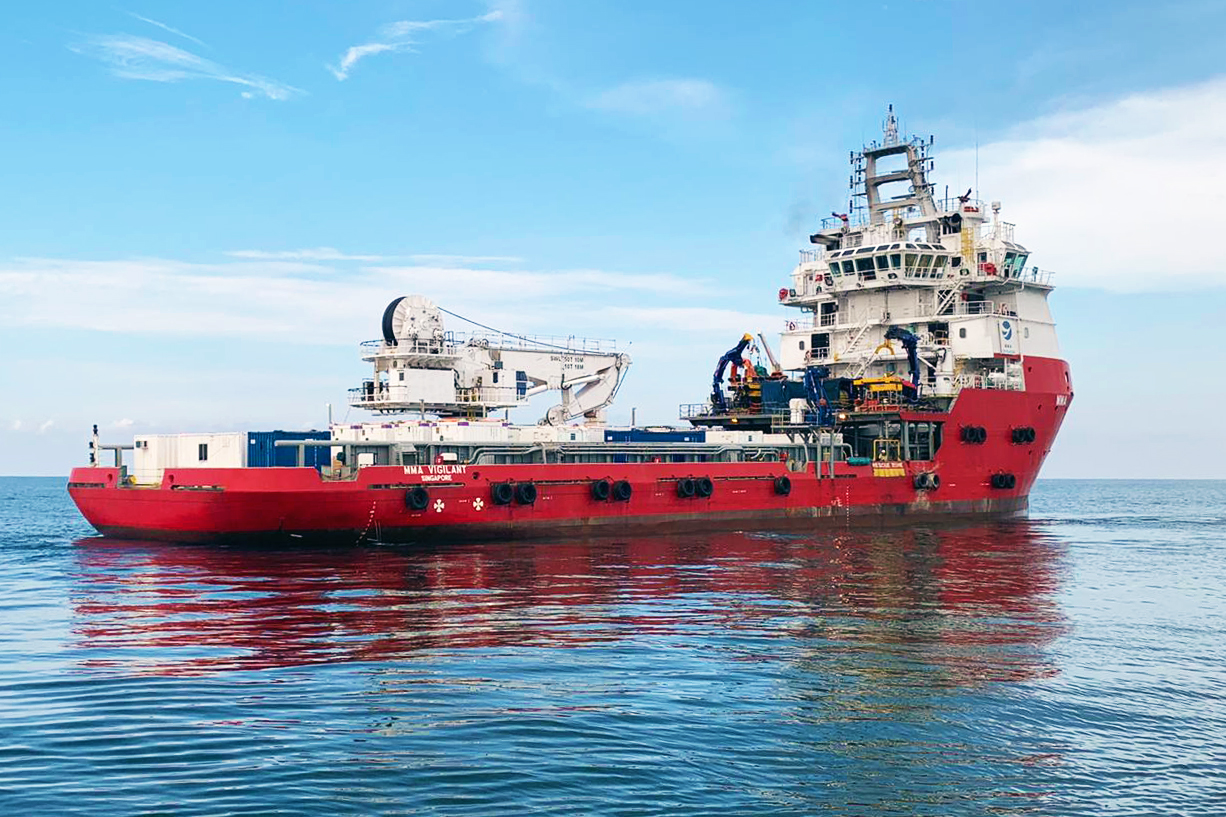

MMA Vigilant is a versatile and flexible multi-purpose support vessel, capable of light construction work, ROV support and project tasks, as well as standard platform and drilling rig supply. The vessel has a proven track record in subsea geotechnical work in East Africa, including working with Benthic’s PROD system in over 2,000m of water depth, deploying current meters and AUV systems and operating work class ROVs.
Enquire Today
Key Features
- Notation:
✠A1, Offshore Support Vessel, Fire Fighting Vessel Class 1, ✠AMS, ✠DPS-2, ✠ACCU
- Built & Flag:
Built in 2013 by Jaya Asiatic Shipyard in Batam, the vessel operates under a Singapore Flag
- Deck Crane:
AHC - knuckle boom electro-hydraulic (50mt @ 10m, 10mt @ 18m, 20mt @ 10m)
- Accommodation:
60 man accommodation with SPS 2008 class notation
- Subsea Support:
Dedicated survey rooms, removable mezzanine deck and exclusive power supply for ROV/dive operations
- Area of operations:
The vessel has a strong track record operating in Australia and South East Asia
Vessel Summary
- PARTICULARS
- Length Overall 83.60 m
- Length Between Perpendiculars 73.20 m
- Breadth Moulded 20.00 m
- Depth Moulded 9.00 m
- Draft (design) 7.4 m
- Built PT JAS, Batam (2013)
- GRT/NRT 4,268/1,811
- Class ABS
- Notation ✠A1, Offshore Support Vessel, Fire Fighting Vessel Class 1, ✠AMS, ✠DPS-2, ✠ACCU
- Flag Singapore
- Call Sign 9V9816
- PERFORMANCE
- Maximum Speed 14 knots @ 6.15 m draft
- Economical Speed 10 knots
- Fuel Type Marine Gas Oil
- Fuel Consumption 27 mt/24h @ max. speed, approx.
13.5 mt/24h @ economical speed, approx.
- CARGO CAPACITIES
- Deck Cargo 1,200 tonne
- Deck Strength 7.5 t/m² uniform loading
- Clear Deck Area 950 m² (incl. of Mezzanine Deck & underneath Crane Boom Area)
- Fuel Oil 1,350 m³
- Fresh Water 893 m³
- Ballast/Drill Water 2,737 m³
- Liquid Mud/Brine 1,050 m³
- Base Oil 141 m³
- Bulk Cement 300 m³
- Foam/Detergent 23/23 m³
- CARGO PUMPS
- Fuel Oil 2 x 100 m³/h @ 9 bar
- Fresh Water 1 x 100 m³/h @ 9 bar
- Ballast / Drill Water 2 x 200/100 m³/h @ 9/25 bar
- Liquid Mud / Brine 2 x 75 m³/h @ 24 bar
- Base Oil 2 x 100 m³/h @ 90 m
- Bulk Cement 2 x 60 m³/h @ 5.6 bar
- Brine 2 x 75 m³/h @ 90 m
- PROPULSION SYSTEM
- Main Engines 2 x 3,000 kW (8,047 bhp) @ 750 rpm, MAK 9M25
c/w PTO for FiFi-1 pumps
- Main Generators 3 x 500 kWe, 440V/3ph/60Hz
- Emergency Generator 1 x 94 ekW, 440V/3ph/60Hz
- Shaft Alternator 2 x 1,800 kWe @ 1,800 rpm Marelli
440V/3ph/60Hz, gearbox PTO driven
- Bow Thruster 2 x 800 kW electric-driven, Kawasaki
- Stern Thruster 2 x 680 kW electric-driven, Kawasaki
- Steering Gear Ven der Velden, 132 kNm 45-0-45 deg
- Propulsion 2 x CP propeller, 4-bladed, 3.9 mØ, Berg
- Rudders 2 x flap rudder
- Roll Stabilising System Passisve U type tanks
- DECK EQUIPMENT
- Bow Anchors 2 x 3,060 kg, AC14
- Chains Chain: 605 m (L) x 50 mm Ø total, approx.
- Capstan 2 x 5 mt @ 0-15 m/min, electro-hydraulic,
- Tugger Winch 2 x 10 mt @ 0-12 m/min, electro-hydraulic,
- Deck Crane 1 x 4 mt @ 12 m boom, electro-hydraulic
- Deck Crane 1 x 50 t AHC Knuckle boom, electro-hydraulic,
with 3,000 m wire rope
50 t @10 m radius for surface lift
20 t @10 m radius for 3,000 m subsea lift
10 t @18 m radius for surface lift
- ACCOMMODATION
- Crew 12 x 1 berth cabins
8 x 2 berth cabins
8 x 4 berth cabins
- Total 60 berth cabins
- Hospital 1 x 1 berth cabins
- Notes All cabins fully air-conditioned & c/w attached washroom
- FIRE FIGHTING EQUIPMENT - EXTERNAL
- FiFi Sytem Class 1 with water curtains all round
- Fire Pump 2 x 2016 m³/h @ 127 mlc
- Monitors Throw length/height:
120 m from bow/50 m from Stern
2 x 6 m booms c/w 6 nozzles each
- Monitors - (water/foam) 1 x 1,200/300 m³/h, FFS A/S, FFS1200LB
- Monitors - (water) 1 x 1,200 m³/h, FFS A/S, FFS1200LB
- Oil Dispersant System 2 x 6 m booms c/w 6 nozzles each
- FIRE FIGHTING EQUIPMENT - INTERNAL
- Emergency Fire Pump 1 x 50 m³/h @ 80 m head, approx.
- BA Recharging Comp 1 x 260 l/min @ 300 bar, approx.
- CO2 Fixed Fire Extinguishing Sys. Engine Room & Cement Tank Compartment
- Fire Detection & Alarm System Accommodation Passageways & Common Areas,
Shaft Alternator 2 x 1,800 kWe @ 1,800 rpm AVK
or equal & Engine Room
- DYNAMIC POSITIONING
- DP MT Bridgemate DP2
- DGPS - Quantity 2 x Seastar DGPS
- HIPAP 1 x 501 APOS Kongsberg
- Joystick - Type Bridgemate Compact Portable IJS
- Laser - Type 1 Cyscan
- RADIO AND NAVIGATION EQUIPMENT
- GMDSS Furuno RC-1800T (Area 3)
- SSB 1 x Furuno FS-2570 with built-in DSC
- Inmarsat C 1 x Furuno Felcom 15, 1 x Felcom 15 SSAS
- VHF Radio 2 x Furuno FM 8800S with built-in DSC
- Navtex Receiver 1 x Furuno NX 700
- SART 2 x McMurdo S4 (9GHz)
- EPIRB 1 x McMurdo E3A (406 MHz)
- Portable VHF Radios 4 x McMurdo R2
- Radar 1 x Furuno FR 2117 (X Band)
1 x Furuno FR 2137S (S Band)
- Echo Sounder 1 x Furuno FE 700 plus remote depth indicator FE720
- GPS 1 x Furuno GP 150
- Autopilot 1 x Anschuetz Pilotstar D
- Magnetic Compass 1 x Cassens & Plath Reflecta 1
- Weather Fax 1 x Furuno FAX 408
- Speed Log 1 x Furuno DS-80
- AIS 1 x Furuno FA-150
- VSAT 1 x V11 KVH mini VSAT
- Dynamic Positioning System - 2 Marine Technologies, comprising:
a) 3 x gyrocompass, 3 x wind sensors
& 3 x motion reference units
b) 2 x DGPS with gyro interface
c) 1 x Cyscan or equal
d) 1 x hydro-acoustics sensor (optional extra)
e) 1 x independent joystick, cJoy
Vessel also fitted with Zenitel PA Talkbalk System & Self-Powered Telephones
- MISCELLANEOUS
- Search Lights 3 x 2,000 W halogen tungsten lights
- Floodlights 8 x 400 W
- Liferafts 6 x 30 men SOLAS approved type
- Rescue Boat 1 x 6 men c/w davit
- Oily Water Separator 1 x 1 m³/h c/w 15 ppm alarm;
- Water Maker 1 x 10 m³/day, approx., reverse osmosis
Seanly SW-10T or equal
1 x 22 m³/day, approx., reverse osmosis,
Hatenboer
- Sewage Treatment Plant 1 x 60 men, Evac or equal
