Overview

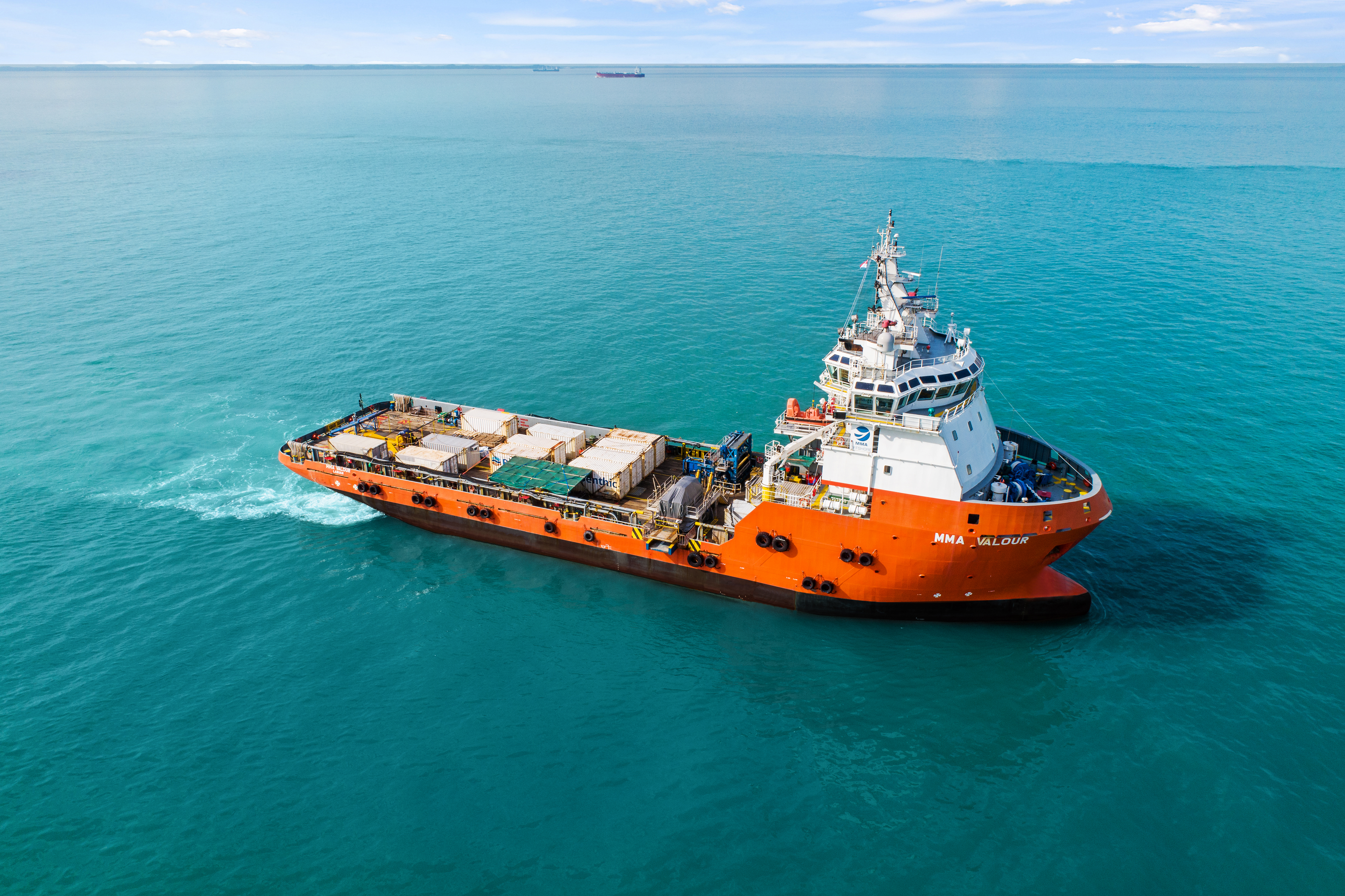

The MMA Valour is a versatile and flexible multi-purpose platform supply vessel, capable of ROV support and project tasks, as well as standard platform and drilling rig supply. The vessel has a proven track record in coiled tubing and fracking campaigns in South East Asia, and has supported deepwater drillships in the South China Sea.
Enquire Today
Key Features
- Notation:
✠A1, ABS, Fire Fighting Vessel Class 1, Offshore Support Vessel, (E), ✠AMS, ✠ACCU, ✠DPS-2, SPS
- Built & Flag:
Built in 2013 by Jaya Asiatic Shipyard, the vessel operates under a Labuan Flag
- Capacities:
1000m² clear deck space and the ability to carry over 5,100 tonnes cargo deadweight
- Accommodation:
60 man accommodation with SPS 2008 class notation
- Mezzanine Deck:
Fitted with a removable mezzanine deck for ROV and peripheral systems installations
- Dynamic Positioning:
DP2 notation, two bow thrusters and two stern thrusters provide ideal offshore manoeuvring
Vessel Summary
- PARTICULARS
- Vessel Type Multi-Purpose Platform Supply Vessel
- IMO Number 9651929
- Port of Registry Labuan
- Year Built 2013
- Class ABS
- Notation ✠A1, ABS, Fire Fighting Vessel Class 1, Offshore Support Vessel, (E), ✠AMS, ✠ACCU, ✠DPS-2, SPS
- DETAILS
- Length Overall 83.6 m
- Breadth 20.0 m
- Beam 20 m
- GRT-NRT 4,258/1,892
- Deadweight 5,509 t
- Depth Main deck Midship 9 m
- Maximum draft 7. 35 m
- BHP 2 x 3,000 kW (8,047 bhp) @ 750 rpm, MAK 9M25
- Cargo deck area 1,000 m²
- Deck loading 2,000 tonne (estimated) 7.5 m² Deck Strength
- Max Speed 14
- Sewage Plant Fitted
- Joystick 1 x Compact OS
- Flow Meter Fitted
- PUMPING RATES
- Fuel Oil 2 x 100 m³/hr @ 9 bar, approx.
- Drill water 2 x 100 m³/hr @ 9.25 bar, approx.
- Dry bulk 2 x 60 m³/h @ 5.6 bar, approx.
- Fresh water 1 x 100 m³/hr @ 9 bar, approx.
- Liquid mud 2 x 75 m³/hr @ 24 bar approx
- Brine 2 x 75 m³/hr @ 90 m, approx.
- Base oil 2 x 100 m³/hr @ 90 m, approx.
- Glycol N/A
- Methanol N/A
- MACHINERY
- Main Engines 2 x Mak 9M25C 3,000 kW
- Generators 3 x CAT/C18 500 kW
- Emergency Generators 1 x 94 kW CAT/C44DITA
- Bow Thruster 2 x 800 kW Tunnel Type
- Propulsion 2 x Berg Propulsion/BCP960
- ACCOMMODATION
- Berths 4 x 8, 2 x 8, 1 x 12
- Total 60
- FIRE FIGHTING
- Class 1
- Monitors 2 x 1,200 m³/hr
- Pumps 2 x 1,711 m³/hr
- Extinguishers Fitted (diff.type CO²/Dry Powder/Foam/Chem.)
- Fire hoses 16
- DECK EQUIPMENT - TUGGER WINCH
- Number & Capacity 2 x 10 t Electro-hydraulic
- Wire Capacity 26 mm x 200 m
- OTHER DECK EQUIPMENT
- Crane 1 x Cargotec Provisions Crane,
4 ton @ 12 m boom max reach
- LIFESAVING
- Liferafts 6 x 30 man
- Lifejackets 80
- Rescue Boat/FRC 1 x WME - SAD30
- Lifebuoys 12
- Immersion Suits 69
- SPECIALIST
- DP Class DP class 2 (MT bridgemate)
- DGPS 2
- Fanbeam/CyScan CyScan
- Hydro-acoustic 1 x HiPAP transducer mounted through gate valve
- RADIO AND NAVIGATION EQUIPMENT
- GMDSS Furuno RC-1800T (Area 3)
- SSB 1 x Furuno FS-2570 with built-in DSC
- Inmarsat C 1 x Furuno Felcom 15, 1 x Felcom 15 SSAS
- VHF Radio 2 x Furuno FM 8800S with built-in DSC
- Navtex Receiver 1 x Furuno NX 700
- SART 2 x McMurdo S4 (9GHz)
- EPIRB 1 x McMurdo E3A (406 MHz)
- Portable VHF Radios 4 x McMurdo R2
- Radar 1 x Furuno FR 2117 (X Band)
1 x Furuno FR 2137S (S Band)
- Echo Sounder 1 x Furuno FE 700 plus remote depth indicator FE720
- GPS 1 x Furuno GP 150
- Autopilot 1 x Anschuetz Pilotstar D
- Magnetic Compass 1 x Cassens & Plath Reflecta 1
- Weather Fax 1 x Furuno FAX 408
- Speed Log 1 x Furuno DS-80
- AIS 1 x Furuno FA-150
- VSAT 1 x V11 KVH mini VSAT
- Dynamic Positioning System - 2 Marine Technologies, comprising:
a) 3 x gyrocompass, 3 x wind sensors & 3 x motion reference units
b) 2 x DGPS with gyro interface
c) 1 x Cyscan or equal
d) 1 x hydro-acoustics sensor
e) 1 x independent joystick, cJoy
Vessel also fitted with Zenitel PA Talkbalk System & Self-Powered Telephones
- MISCELLANEOUS
- Oily Water Separator 1 x 1 m3/h c/w 15 ppm alarm;
- Water Maker 1 x 10 m3/day, approx., reverse osmosis Seanly SW-10T or equal 1 x 22 m3/day, approx., reverse osmosis, Hatenboer
- Sewage Treatment Plant 1 x 60 men, Evac or equal
- Removable Mezzanine Deck (optional) 1 unit (approx. 180 m2)
