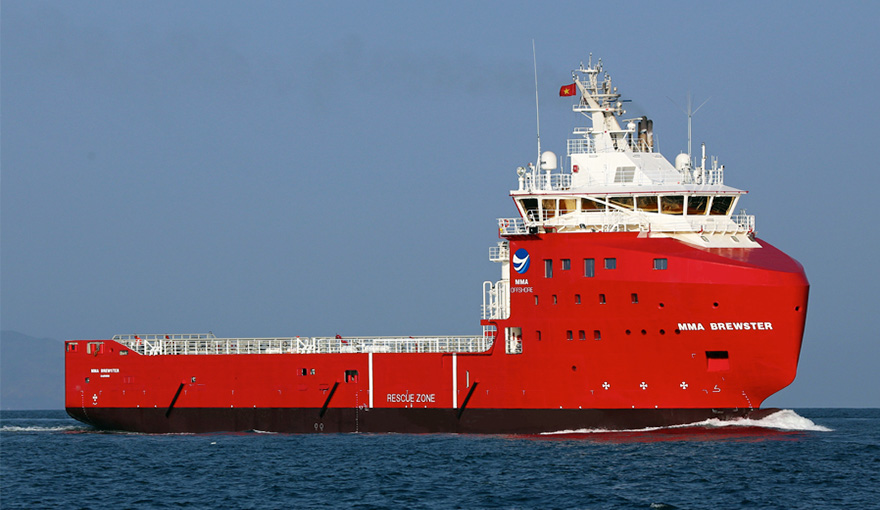

MMA Brewster

Overview

The MMA Brewster and its sister vessel MMA Plover were both purpose built to be the production support vessels for the Ichthys LNG Project in Australia. Located about 220 kilometres offshore Western Australia, Ichthys represents the largest discovery of hydrocarbon liquids in Australia in 40 years. The Brewster is a truly bespoke PSV design. Constructed as per IBC-2 regulation it has unrivalled chemical carrying capacity in the PSV market.

Enquire Today

Key Features

Notation:
✠1A1 Fire fighter (I), Standby vessel, BIS, Clean (Design), COMF(C-3, V-3), DK(+), DYNPOS(AUTR), E0 HL(2.8), LFL(*), NAUT(OSV(A)), SF
Built & Flag:
Built in 2015 by VARD the vessel operates under an Australian flag
Deck Space:
With just over 820 m2 of clear deck space at 10t/m2 strength, the vessel is ideal for above deck cargo transportation
Tank capacities:
Beyond standard offshore supply (i.e. fuel, water, mud etc.) the PSV has capacity to carry substantial dangerous and noxious liquid chemicals in bulk including but not limited to MEG, TEG, NaOH, HCI and H2S Scavenger
BHP:
Featuring 3 diesel electric caterpillar generators and 2 Rolls Royce propulsion units the vessel has a total of 8,425 BHP
Area of Operations:
The vessel is on long-term charter with INPEX supporting the Ichthys Project in Australia.

Download Full Specifications

Download General Arrangement

Vessel Summary

Particulars
- Vessel Type Platform Supply Vessel
- IMO Number 9737216
- Port of Registry Darwin
- Year Built 2016
- Class DNV
- Notation ✠1A1 Fire fighter (I), Standby vessel, BIS, Clean (Design), COMF(C-3, V-3), DK(+), DYNPOS(AUTR), E0 HL(2.8), LFL(*), NAUT(OSV(A)), SF
Details
- Length Overall 81.70m
- Breadth 18.0m
- Beam 18.0m
- GRT-NRT 3804/1419
- Deadweight 4000T (IBC) / 4150 (SF)
- Depth Main Deck 8.40m
- Maximum draft 6.95m
- BHP 8425 approx
- Cargo deck area 810m²
- Deck loading 10 t/m²
- Max Speed 14 knots
- Bollard Pull N/A
- Sewage Plant MARPOL compliant
- Joystick Cjoy control available at aft/wing consoles in Wheelhouse
- Flow Meter Fitted on fresh water and fuel oil system
Capacity
- MEG 432 m³
- TEG 46 m³
- NaOH 202 m³
- HCl 103 m³
- H2S Scavenger (EC9356A) 50 m³
- Liquid Mud 673 m³
- Brine 2 x brine cargo pump capable of 75m³/hr @ 60m head
- Barites (Dry Bulk) 2 x dry bulk transfer system capable of 60t/h @ 60m head
- Bentonites (Dry Bulk) 2 x dry bulk transfer system capable of 60t/h @ 60m head
- Cement (Dry Bulk) 2 x dry bulk transfer system capable of 60t/h @ 60m head
- Drill Water 2 x drill water/ballast water cargo pump capable of 200m³/hr @ 60m head
- Ballast Water 2 x drill water/ballast water cargo pump capable of 200m3/hr @ 60m head
- Base Oil 1 x base oil cargo pump capable of 75m³/hr @ 60m head
- Diesel Fuel 2 x fuel oil cargo pump capable of 200m³/hr @ 60m head
- Potable Water 2 x fresh water cargo pump capable of 200m³/hr @ 60m head
- Special Product (LFL* tanks) 4 X special product pump capable of 75m³/hr @ 60m head
MACHINERY
- Generators 3 x Caterpillar 3516C
- Harbour Generators 1 x Caterpillar ACERT C-18
- Emergency Generators 1 x Caterpillar C6.6 ACERT
- Bow Thruster 3 x Brunvoll Type FU74LTC2000
- Propulsion 2 x Rolls-Royce Azipull Propeller Systems
ACCOMMODATION
- Berths 15 Single, 12 Double
- Total 27
DECK EQUIPMENT - Tugger Winch
- Number & Capacity NDM 2 x 15 Tonne single drum
DECK EQUIPMENT - Cargo Securing Winches/Rollers
- Type NDM 2 x 10 Tonne single drum and warping end
Other Deck Equipment
- Crane TTS Marine 1 x 10 Tonne Knuckle Boom – 1 x 2 Tonne Straight Boom
LIFESAVING
- Life rafts 6 x UNITOR KHA-16 SOLAS approved
- Rescue Boat/Davit 1 x Alusafe 700MKII, 15 person plus Davit
- Immersion Suits 5 immersion
FIRE FIGHTING
- Class FiFi 1
- Extinguishers Powder, CO2, Foam, Wet Chemical
- Fire hoses Adjacent to each of the hydrants, a 2” x 15/20M fire hose.
SPECIALIST
- DP Class DP-2
- DGPS 2
- Fanbeam/CySan Fitted
- Radius System Fitted
