MMA Pinnacle

/sites/mmaoffshorecomau//assets/public/image/ProductListing/Pinnacle Subsea Well Intervention.jpg

Overview

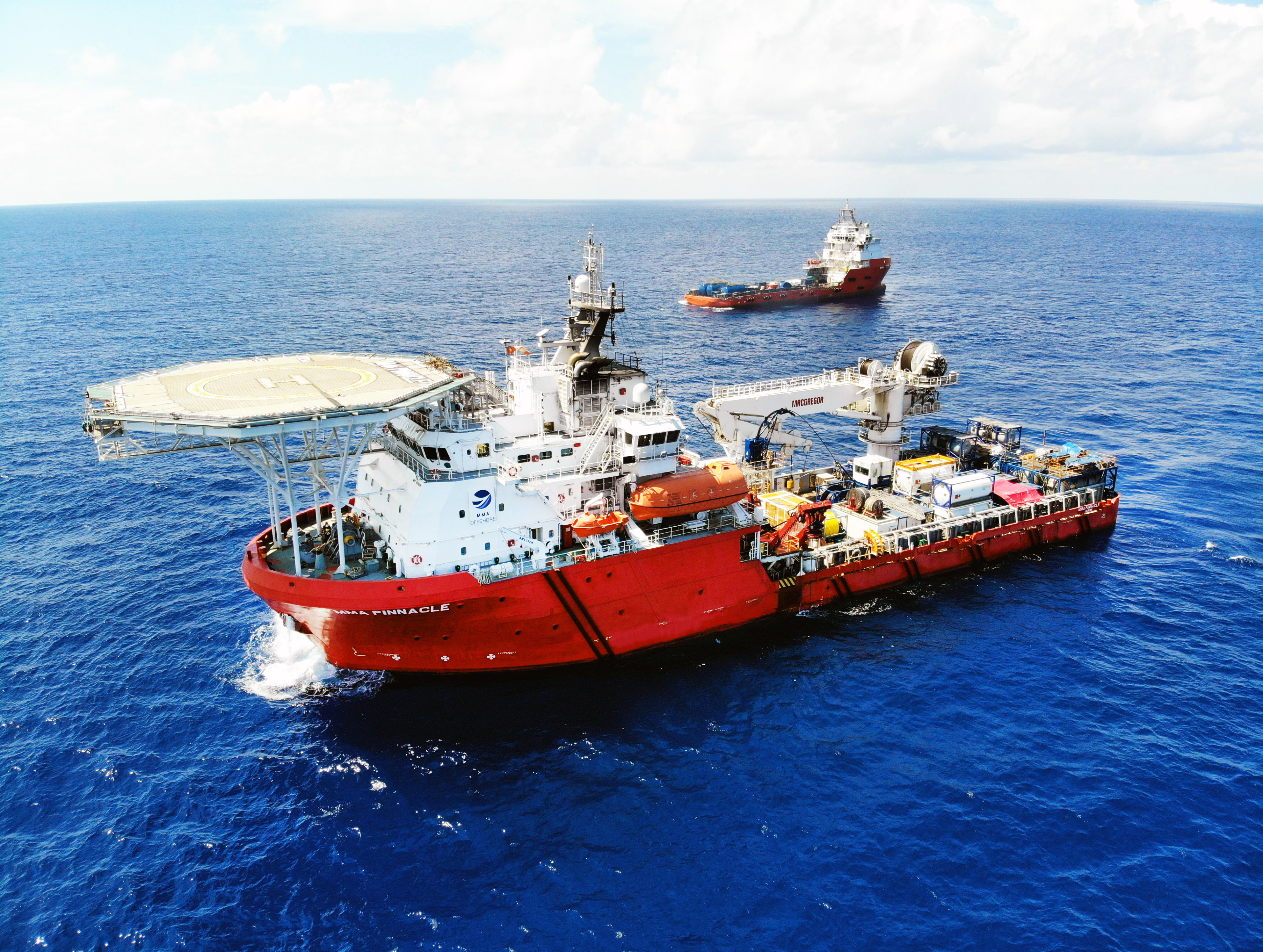

MMA Pinnacle has been designed and constructed to provide customers the opportunity for faster, more efficient and cost effective project mobilisation times. MMA Pinnacle offers superior ultra-deep water lift capabilities compared with similar vessels and has been designed with on-board systems and infrastructure to be on location longer with minimised external support, and maximum shipboard facilities for productive offshore work. The Pinnacle has a NOPSEMA approved for Safety Case for IMR operations in Australian waters.

Enquire Today

Key Features

  • Notation:
    ✠1A Offshore service vessel(Supply) Standby vessel BIS COMF(C-3) Crane DPS(2) E0 HELDK SPS Strengthened(DK)
  • Built & Flag:
    Built in 2016 in MMA’s Batam Shipyard, the vessel operates under a Labuan Flag
  • Subsea Crane:
    150 tonnes MacGregor Active Heave Compensating Hydraulic knuckle boom crane
  • Accommodation:
    100 man accommodation with ABS comfort notation
  • Subsea Support:
    Dedicated survey rooms, removable mezzanine deck for ROV/dive operations and a 5.4 m x 5.4 m moon pool
  • Area of operations:
    Since delivery the vessel has operated in South East Asia, the Middle East and in Australian waters

Vessel Summary

  • Particulars
    • Length Overall 87.8 m
    • Length Between Perpendiculars  79 m
    • Length Waterline 83 m
    • Breadth Moulded 22 m
    • Depth Moulded 7.8 m
    • Draft (design) 5.5 m
    • Built Dec 2016, PT JAS Batam
    • GRT / NRT 5,138 T/1,541 T (approx.)
    • Class DNV-GL
    • Notation ✠1A Offshore service vessel(Supply) Standby vessel BIS COMF(C-3) Crane DPS(2) E0 HELDK SPS Strengthened(DK)
    • Flag Labuan
    • IMO Number 9696187
    • Official No. 900109
    • Call Sign 9WNM1
  • PERFORMANCE
    • Maximum Speed 11.50 knots (approx.)
    • Economy Speed 9 knots (approx.)
    • Type of Fuel Marine gas oil
  • CARGO CAPACITIES
    • Deadweight 2,420 tonne (approx.) at 5.50 m draft
    • Deck Cargo 1,400 tonne (approx.)
    • Deck Strength 10.0 t/m² uniform loading
    • Free Deck Area 1,000 m² (Main deck without Mezzanine), 685m² (Main Deck with Mezzanine), 295m² (Mezzanine)
    • Fuel Oil 868 m³ (approx.) (Exc. Multi-purpose tanks)
    • Fresh Water 586 m³ (approx.)
    • Ballast / Drill Water 3,270 m³ (approx.)
    • Cement 104 m³ (approx.)
    • Mud 682 m³ (approx.)
    • Methanol 218.2 m³ (approx.)
    • Oil Dispersant 9.4 m³ (approx.)
    • Freezer / Chiller 50 m³/ 50 m³, (approx.)
  • CARGO PUMPS
    • Fuel Oil 2 x 150 m³/h @ 100 m head
    • Fresh Water 1 x 150 m³/h @ 100 m head
    • Ballast / Drill Water 2 x 150 m³/h @ 90 m head
    • Potable Water 1 x 150 m³/h @ 100 m head
    • Dry Bulk 1 x 42 m³/h @ 5.6 bar
    • Liquid Mud/Brine 2 x 75 m³/h at 240 m head
  • ROV POWER
    • Power for ROV from Switchboard 2 x 500 KVA
  • PROPULSION SYSTEM (ROLLS-ROYCE) - DIESEL ELECTRIC
    • Main Generators 4 x 2,560 kW (C25:33 L8A 2.CD)
      Alternator 690V / 3ph / 60Hz @ 0.8 pf, 900rpm
      (MJR 630 LA8)
    • Emergency Generator 1 x 500 kW (CAT. C18)
      Alternator 440V / 3ph / 60Hz @ 0.8 pf, 1,800rpm
    • Bow Thruster 3 x 1,000 kW Tunnel thruster, electric-driven
      (B5J450 LC6-TT2000)
    • Propulsion 2 x 2,050 kW Azimuth thruster electric-driven
      (B5J560 LB6)
    • Drives Active Front End, Variable Frequency (AFE_2050)
  • DECK EQUIPMENT
    • Anchor Windlass & Mooring 1 x Electro-hydraulic (Maker - Macgregor)
    • Bow Anchors 2 x 2,835 kg (approx.) high holding power type
    • Anchor Chains 522.5 m length, Ø54 mm U2
    • Capstan 2 x 10 T at 15 m/min electro-hydraulic
      (Maker - Macgregor)
    • Tugger Winch Deck 2 x 10 T at 15 m/min (Maker - Macgregor)
    • Crane - Main AHC Hydraulic knuckle boom, main boom
      Lifting capacity 150T at 15m
      (Maker - Macgregor)
    • Deck Crane - Auxiliary/Prov. Electro-hydraulic telescopic,
      5T at 15m (Maker -TTS)
    • Helideck Aluminium type, suitable for Sikrosky S92
      (Maker - Aluminium Offshore)
  • ACCOMMODATION
    • Berths 12 x 1 berth = 12 , 16 x 2 berth = 32 , 4 x 3 berth = 12 , 11 x 4 berth = 44
    • Total Berths 100 Berth
    • Sick Bay 2 berth cabin
    • Notes All cabins are fully air-conditioned and come with attached washroom
  • FIRE FIGHTING EQUIPMENT - INTERNAL
    • Fixed Fire Extinguishing CO2 System In Engine Room
    • Local Water Mist Fire Fighting System In Engine Room
    • Fire Detection & Alarm System In Engine Room & Accommodation
      Common Areas & Passageways
    • Automatic Sprinkler System Accommodation Areas
  • FIRE FIGHTING EQUIPMENT - EXTERNAL
    • Foam System Deck area above methanol tank
    • Helideck Foam Fire Fighting System Helideck
  • ANTI-POLLUTION EQUIPMENT(MAKER-TYCO)
    • Oil Dispersent Yes
    • Boom 2 x 6m
    • Pump 1 x 45 m³/h at 50m
  • RADIO & NAVIGATION EQUIPMENT
    • GMDSS 1 (Area 3)
    • Anemometer 1
    • SSB 1
    • Fleet Broadband 1
    • SSAS 1
    • VHF Radio 2
    • Navtex Receiver 1
    • SART 2
    • EPIRB 1
    • Portable VHF Radios 3
    • Radar 2 (With ARPA)
    • ECDIS 1
    • Echo Sounder  1
    • DGPS 1
    • Autopilot  1
    • Magnetic Compass (exemption)  1
    • Weather Fax 1
    • Speed Log 1
    • AIS 1
    • Bridge Nav Watch System 1
    • VDR 1
    • Loading Computer 1
  • DYNAMIC POSITIONING SYSTEM
    • DP2 with Joystick Rolls-Royce Icon
      - 2 x DGPS
      - 3 x Wind sensors
      - 3 x Gyro compass
      - 1 x Laser reference
      - 2 x Gate valve for hydroacoustic sensors
      - 1 x HiPAP 500 (2nd unit - optional extra)
  • INTERCOMMUNICATION SYSTEM
    • PA Talkback System Yes
    • Self-Powered Telepone Yes
    • Integrated Telephone System Yes
    • VSAT 1
    • Clear Com System Yes
  • MISCELLANEOUS
    • Search Lights 4 x 2,000 W
    • Floodlights 20
    • Liferafts 2 x 25 persons davit launched type (SOLAS)
    • Lifeboats 2 x 100 men totally enclosed lifeboat
      (SOLAS Approved) (Maker - Vanguard)
    • Fast Rescue Boat & Davit 1 x 6 men (Maker - Vanguard)
    • Normal Rescue Boat & Davit 1 x 6 men (Maker - Vanguard)
    • Water Maker 2 x 40 m³/day reverse osmosis type
    • Oily Water Separator 1 x 1 m³/h (BOSS 5T/107-USA)
    • Sewage Treatment Plant 1 x 100 men with vacuum system (EVAC MBR120C)
    • Moonpool 1 open bottom, (approx.) 5.4 m x 5.4 m clear opening
      with damping swash bulkheads & air vents
    • N2 Generation System 1 (Wilhelmsen)
