Overview

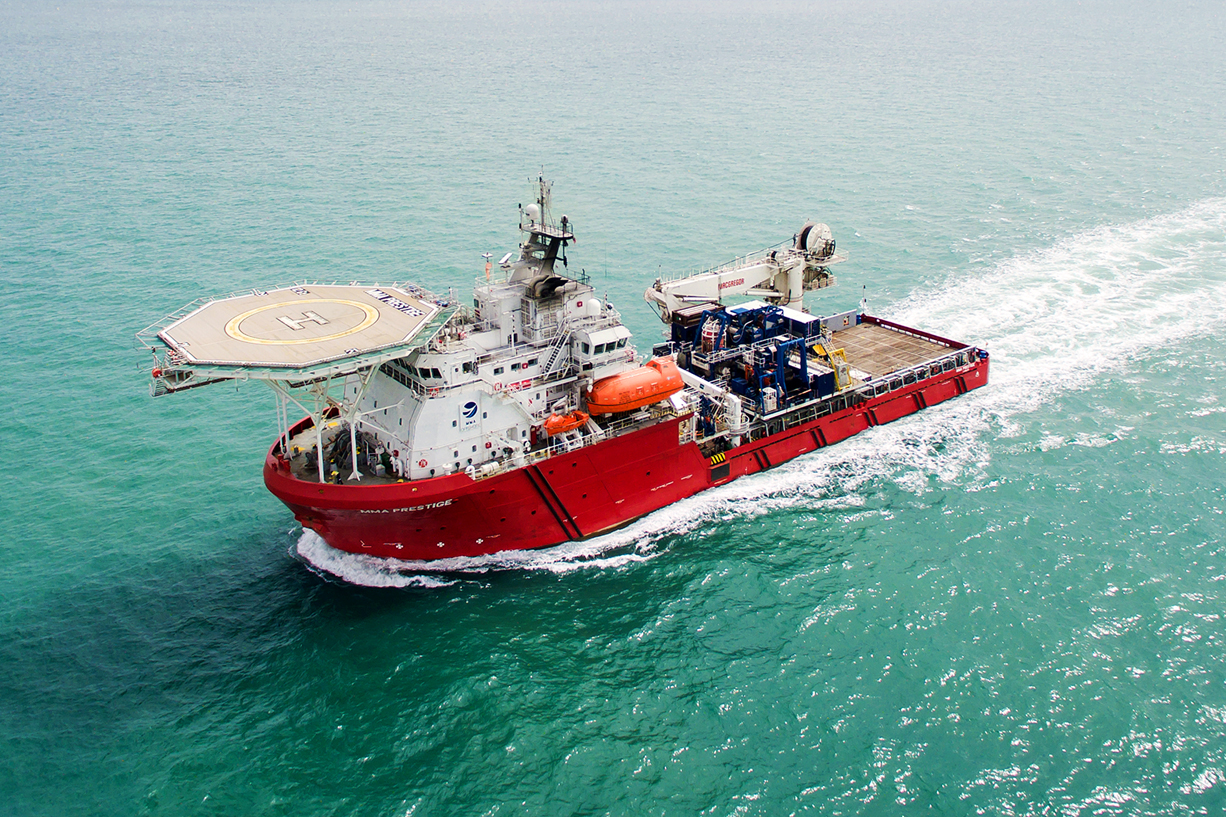

MMA Prestige has been designed and constructed to provide customers the opportunity for faster, more efficient and cost effective project mobilisation times. MMA Prestige has also been designed with on-board systems and infrastructure to be on location longer with minimised external support, and maximum shipboard facilities for productive offshore work.
Enquire Today
Key Features
- Notation:
✠A1, Offshore Support Vessel, Supply-HNLS, E, ✠AMS, ✠ACCU, ✠DPS-2
- Built & Flag:
Built in 2016 in MMA’s Batam Shipyard, the vessel operates under a Labuan Flag
- Subsea Crane:
100 tonnes Macgregor Active Heave Compensating Hydraulic knuckle boom crane
- Accommodation:
100 man accommodation with ABS comfort notation
- Subsea Support:
Dedicated survey rooms, removable mezzanine deck for ROV/dive operations and a 5.4 m x 5.4 m moon pool
- Area of operations:
Since delivery the vessel has operated in South East Asia and the Middle East
Vessel Summary
- Particulars
- Length Overall 87.80 m
- Length Between Perpendiculars 79.00 m
- Length Waterline 83.00 m
- Breadth Moulded 22.00 m
- Depth Moulded 7.80 m
- Draft (design) 5.50 m
- Built 2016, PT JAS Batam
- GRT / NRT 5,138 T/1,541 T(approx.)
- Class ABS
- Notation ✠A1, Offshore Support Vessel, Supply-HNLS, E, ✠AMS, ✠ACCU, ✠DPS-2
- Flag Labuan
- IMO Number 9696175
- Official No. 900104
- Call Sign 9WNL4
- PERFORMANCE
- Maximum Speed 12 knots (approx.)
- Economy Speed 10 knots (approx.)
- Type of Fuel Marine gas oil
- CARGO CAPACITIES
- Deadweight 2,670 tonne (approx.) at 5.50 m draft
- Deck Cargo 1,400 tonne (approx.)
- Deck Strength 10.0 t/m² uniform loading
- Deck Area 650 m² (main deck), 350 m² (under mezzanine), 350 m² (on top mezzanine), 1,350 m² (total storage area)
- Fuel Oil 868 m³ (approx.) (Exc. Multi-purpose tanks)
- Fresh Water 586 m³ (approx.)
- Ballast / Drill Water 3,270 m³ (approx.)
- Cement 104 m³ (approx.)
- Mud 682 m³ (approx.)
- Monoethylene Glycol 215 m³ (approx.)
- Methanol 218 m³ (approx.)
- Oil Dispersant 9.4 m³ (approx.)
- Freezer / Chiller 50 m³/ 50 m³, (approx.)
- CARGO PUMPS
- Fuel Oil 2 x 150 m³/h at 10bar (VSD07-ROTO)
- Fresh Water 1 x 150 m³/h at 10bar (YPH100-280-ROTO)
- Methanol 2 x 75 m³/h at 90 mlc (PG50/250-AT)
- Monoethylene 1 x 45 m³/h at 90 mlc (PG 50/250-A4)
- Glycol Mud 2 x 75 m³/h at 24bar (PG BN70-12V)
- Drill Water 2 x 150 m³/h at 9bar (YPH100-280-ROTO)
- ROV POWER
- Power for ROV from Switchboard 2 x 500 KVA
- PROPULSION SYSTEM (ROLLS-ROYCE) - DIESEL ELECTRIC
- Main Generators 4 x 2560kW Rolls-Royce
C25:33 L8A 2CD
- Emergency Generator 1 x 500 kW (CAT. C18)
Alternator 440V / 3ph / 60Hz @ 0.8 pf, 1,800rpm
- Bow Thruster 3 x 1,000 kW Tunnel thruster, electric-driven
(B5J450 LC6-TT2000)
- Propulsion 2 x 2,050 kW Azimuth thruster elect-driven
(B5J560 LB6)
- Drives Active Front End, Variable Frequency (AFE_2050)
- DECK EQUIPMENT
- Anchor Windlass & Mooring 1 x Electro-hydraulic (Maker - MacGregor)
- Bow Anchors 2 x 2,835 kg (approx.) high holding power type
- Anchor Chains 522.5m length, Ø54 mm U2
- Capstan 2 x 10 Ton at 15 m/ min, Vertical MacGregor MG-HVC 1045, electrohydraulic
- Tugger Winch Deck 2 x 10 T at 15 m/min (Maker - MacGregor)
- Crane - Main Offshore knuckle jib crane, 100 T@15 m, MacGregor HMC 3568 LKO 250-32 (1000-15) AHC, Main wire: 2,100 m, Aux wire: 520 m, 2 x 4 Ton at 15 m/min Tugger Winch
(Maker - MacGregor)
- Deck Crane - Auxiliary/Prov. Electro-hydraulic telescopic,
5T at 15m (Maker -TTS)
- Helideck Aluminium type, suitable for Sikrosky S92
(Maker - Aluminium Offshore)
- ACCOMMODATION
- Berths 12 x 1 berth = 12 , 16 x 2 berth = 32 , 4 x 3 berth = 12 , 11 x 4 berth = 44
- Total Berths 100 Berth
- Sick Bay 2
- Notes All cabins are fully air-conditioned and come with attached washroom
- FIRE FIGHTING EQUIPMENT - INTERNAL
- Fixed Fire Extinguishing CO2 System In Engine Room
- Local Water Mist Fire Fighting System In Engine Room
- Fire Detection & Alarm System In Engine Room & Accommodation
Common Areas & Passageways
- Automatic Sprinkler System Accommodation Areas
- FIRE FIGHTING EQUIPMENT - EXTERNAL
- Foam System Deck area above methanol tank
- Helideck Foam Fire Fighting System Helideck
- ANTI-POLLUTION EQUIPMENT(MAKER-TYCO)
- Oil Dispersant Yes
- Boom 2 x 6 m
- Pump 1 x 45 m³/h at 50m
- RADIO & NAVIGATION EQUIPMENT
- GMDSS 1 (Area 3)
- Anemometer 3
- SSB 1
- Fleet Broadband 1
- SSAS 1
- VHF Radio 2
- Navtex Receiver 1
- SART 2
- EPIRB 1
- Portable VHF Radios 3
- Radar 2 (With ARPA)
- ECDIS 1
- Echo Sounder 1
- DGPS 1
- Autopilot 1
- Magnetic Compass Nil
- Weather Fax 1
- Speed Log 1
- AIS 1
- Bridge Nav Watch System 1
- VDR 1
- Loading Computer 1
- DYNAMIC POSITIONING SYSTEM
- DP2 with Joystick Rolls-Royce Icon
- 2 x Fugro Seastar DGPS
- 1 x Laser Reference (Cyscan)
- 1 x HIPAP 500
- 1 x Taut wire system (500m)
- 3 x Anemometer
- 2 x MRU2
- 1 x MRU5
- 3 x Gyro
- INTERCOMMUNICATION SYSTEM
- PA Talkback System Yes
- Self-Powered Telephone Yes
- Integrated Telephone System Yes
- VSAT 1
- Clear Com System Yes
- MISCELLANEOUS
- Search Lights 4 x 2,000 W
- Floodlights 20
- Liferafts 2 x 25 persons davit launched type (SOLAS)
- Lifeboats 2 x 100 men totally enclosed lifeboat
(SOLAS Approved) (Maker - Vanguard)
- Fast Rescue Boat & Davit 1 x 6 men (Maker - Vanguard)
- Normal Rescue Boat & Davit 1 x 6 men (Maker - Vanguard)
- Water Maker 2 x 40m³/day reverse osmosis type
- Oily Water Separator 1 x 1m³/h (BOSS 5T/107-USA)
- Sewage Treatment Plant 1 x 100 men with vacuum system (EVAC MBR120C)
- Moonpool 1 open bottom, (approx.) 5.4 m x 5.4 m clear opening
with damping swash bulkheads and air vents
- N2 Generation System 1 (Wilhelmsen)
Projects
The MMA Prestige was designed and built by MMA Offshore. The vessel is a multipurpose DP2 ROV subsea operations vessel.
