Overview

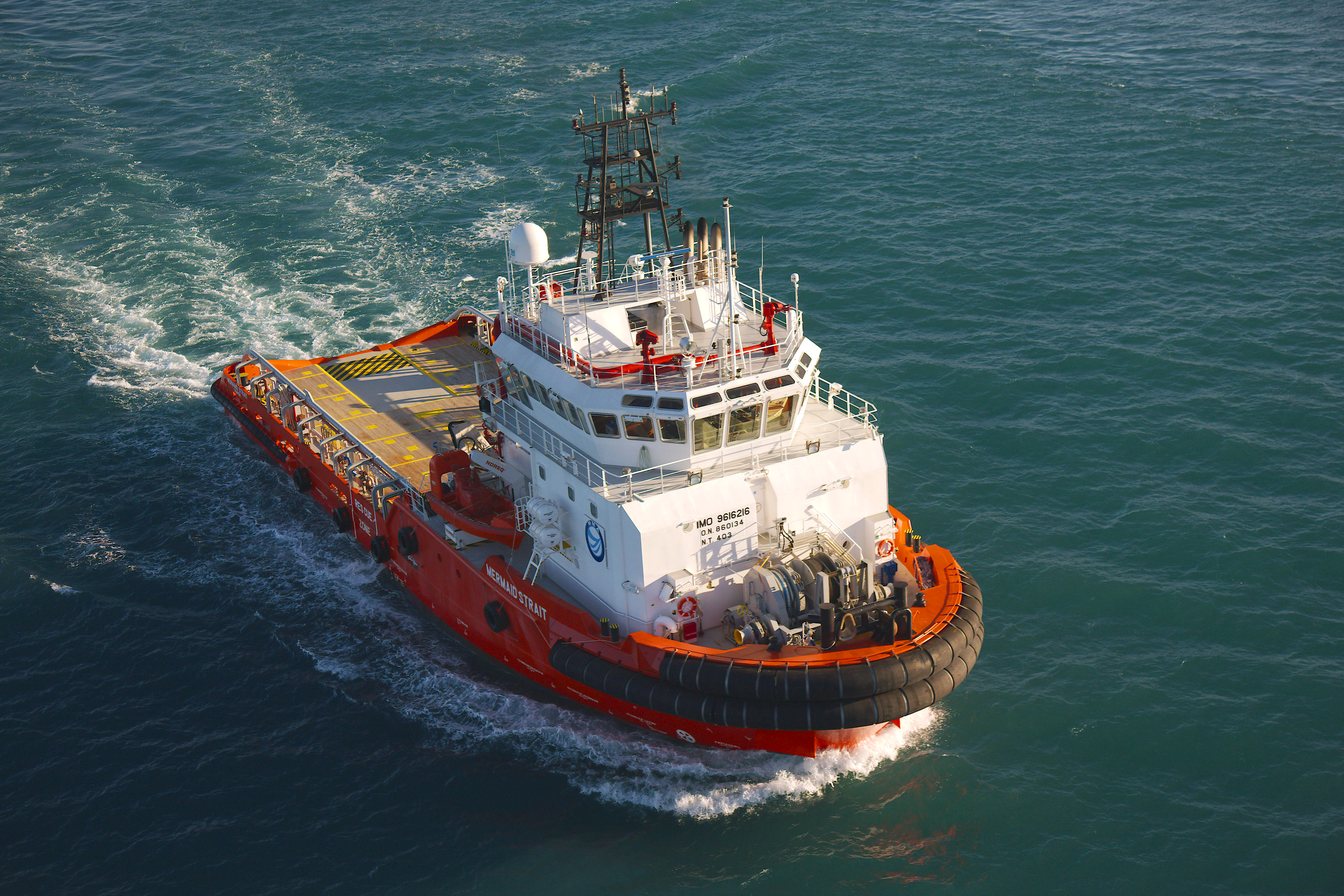

The Mermaid Strait was purpose built to be an offtake support vessel. With its diesel electric propulsion, 69t bollard pull the vessel is one of MMA’s strongest performing AHT vessels in the fleet. The vessel has been on continuous hire since its delivery in 2012 to Woodside – providing FPSO offtake support services on the North West Shelf of Western Australia.
Enquire Today
Key Features
- Notation:
✠A1, Towing Vessel, (Fire Fighting Capability), Offshore Support Vessel AH, (E), ✠AMS, ✠ACCU, ✠DPS-1, ENVIRO, GP
- Built:
Built in 2012 at ASL Shipyards
- Port of Registry & Flag:
Dampier Port & Australian Flag
- Deck Space:
260 m² free deck space at 5 t/m² deck strength
- Bollard Pull:
69 tonnes bollard pull is ideal for static tow operations
- BHP:
7,342 BHP
Vessel Summary
- PARTICULARS
- Vessel Type Diesel Electric, Azimuth, AHT, OSV, DP1
- IMO Number 9616216
- Port of Registry Dampier
- Year Built 2012
- Class American Bureau of Shipping
- Notation ✠A1, Towing Vessel, (Fire Fighting Capability), Offshore Support Vessel AH, (E), ✠AMS, ✠ACCU, ✠DPS-1, ENVIRO, GP
- DETAILS
- Length Overall 52.35 m
- Breadth 14.60 m
- GRT-NRT 1344/403
- Deadweight 979 t
- Depth 6.25 m
- Maximum Draft 5.3 m
- BHP 5,475 kW
- Bollard Pull 69 t
- Clear Deck Space 260 m²
- Deck Loading 5 t/m²
- Max Speed 12.5 kts
- Sewage Plant MARPOL compliant + holding tank
- Joystick Fitted
- Flow Meter Fitted
- CAPACITY
- Fuel Oil 587 m³
- Potable Water 283 m³
- Sewage 16 m³
- DISCHARGE RATES
- Fuel Oil 110 m³/hr @ 60 m head
- Potable Water 120 m³/hr @ 60 m head
- MACHINERY
- Main Engines 3 x Caterpillar 3516C @1,825 kW
- Harbour Generator 1x Caterpillar CP9 @ 250 kW
- Emergency Generators 1 x Caterpillar Generator 40 kW
- Bow Thruster 1 x Schottel STT02 550kW
- Stern Thruster N/A
- Propulsion 2 x Schottel SRP 1515 Azimuth @ 2000kW
- ACCOMMODATION
- Berths 2 x 1, 11 x 2
- Total 24
- DECK EQUIPMENT - Bow Winch
- Type 1 x Cargotec anchor windlass/towing winch Split Drum
- Capacity 800 m x 52 mm wire, 100 m x 72 mm rope
- Pull 35 t
- Brake Holding 150 t
- DECK EQUIPMENT - Anchor Handling Winch
- Capacity 800 m x 52 mm
- Pull 70 t
- Brake Holding 200 t
- DECK EQUIPMENT - Towing Winch
- Capacity 800 m x 52 mm
- Pull 70 t
- Brake Holding 200 t
- DECK EQUIPMENT - Tugger Winch
- Number & Capacity 2 x 10 t
- Wire Capacity 22 mm x 150 m
- Other Deck Equipment
- Towing Pins 100 t SWL
- Sharks Jaws 200 t SWL
- Stern Roller 3.0 m x 1.5 m, 150 t SWL
- Crane 1 x 1.5 t SWL @ 10 m
- LIFESAVING
- Liferafts 4 x 25 man
- FRC/Rescue Boat/Davit SOLAS approved FRC + Davit
- Rescue Zones Fitted
- SPECIALIST
- DP Class DP 1
- DGPS 2
- CYSAN 1
- Bow Fendering One double cylindrical
- Stern Fendering Single cylindrical
- Pilot Disembarkation stations One fitted either side
